Geographic Information Systems (GIS) represent the convergence of computer science, cartography, and spatial statistics. Unlike conventional database management systems or static paper maps, a GIS explicitly connects geographic geometry (coordinates on Earth) with tabular attributes (descriptive metadata). This spatial relationship empowers scientists, urban planners, surveyors, and environmental managers to ask complex location-dependent questions such as 'Which residential parcels intersect a 100-year floodplain?' or 'Where is the optimal corridor for an electrical transmission line minimizing ecological disturbance?'. In this foundational guide, we unpack the fundamental architecture, data models, and analytical principles of GIS.
š Prerequisites
- No prior GIS experience required.
- Basic understanding of spreadsheets (rows and columns) and map coordinates.
- A computer with a modern web browser to explore WebGIS portals.
š ļø Technical Environment
Required Software: Python / GeoPandas or QGIS (Recommended: 3.34+ LTR / Python 3.10+)
Practice Dataset: Natural Earth Populated Places & Administrative Boundaries
Source Portal: Natural Earth Public Domain
CRS / Format: WGS 84 (EPSG:4326) (GeoPackage / Shapefile)
Step-by-Step Workflow & Methodological Execution

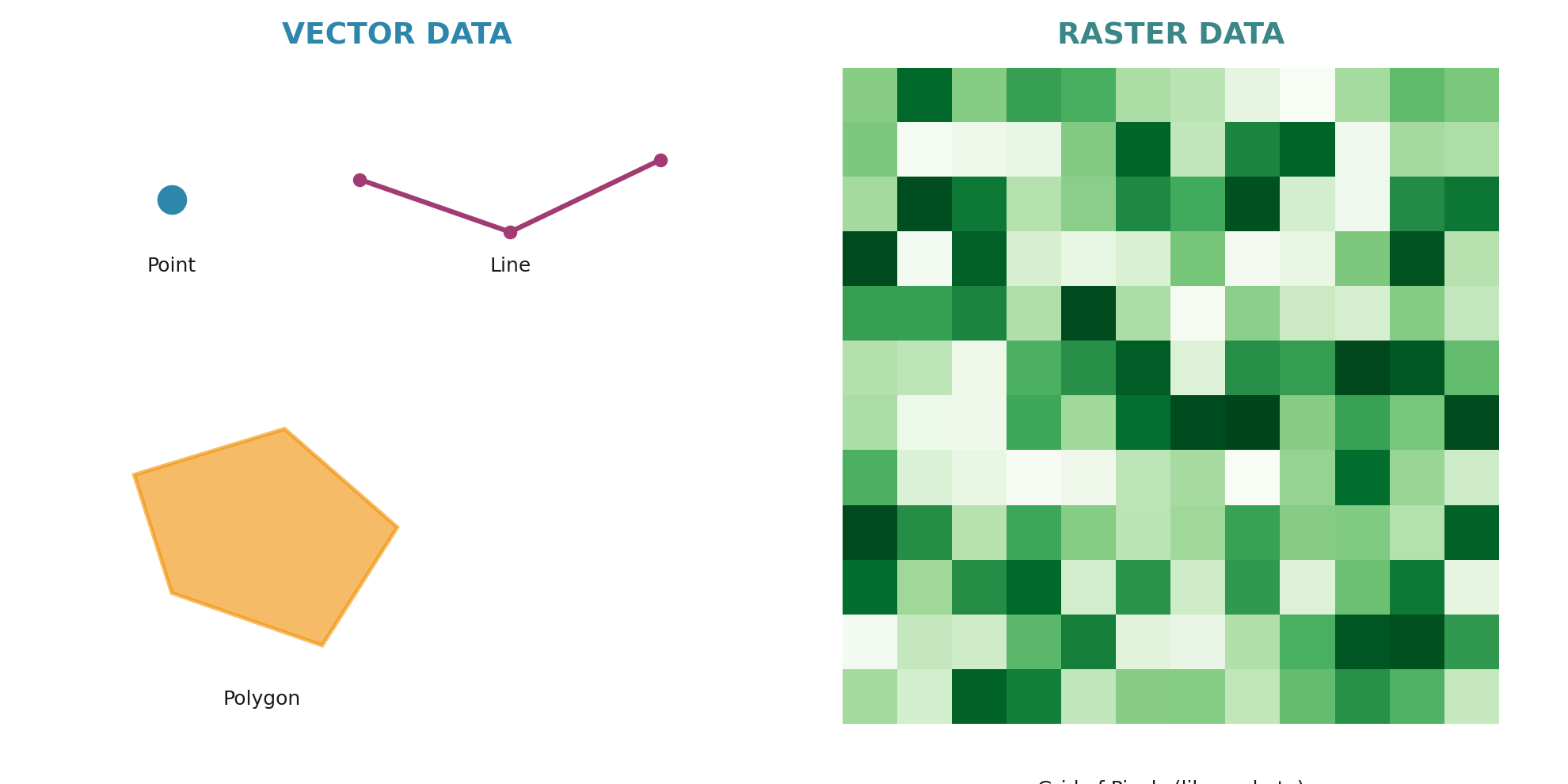

Module 1: The Core Architecture of Spatial Data (Vector vs Raster)
All geospatial phenomena in the real world are abstracted into two primary digital models: Vector and Raster. 1. The Vector Model represents discrete features using coordinate geometry (points, lines, and polygons). A Point consists of a single coordinate pair [X, Y] (e.g., a water well or telecom tower). A LineString represents an ordered sequence of connected vertices (e.g., roads, pipelines, or rivers). A Polygon forms a closed linear ring enclosing an area (e.g., cadastral land parcels, lakes, or administrative boundaries). Vector data retains infinite geometric fidelity and allows topological relationships like adjacency and containment. 2. The Raster Model abstracts continuous phenomena as a regular grid of tessellated square cells (pixels). Each pixel stores a single numerical value representing a measured property (e.g., elevation in meters from a DEM, surface temperature in Kelvin, or spectral reflectance from a satellite sensor). Raster models excel at surface modeling and spatial map algebra but require high storage volumes at fine spatial resolutions.
Module 2: The Critical Link Between Geometry and Attribute Tables
The defining superpower of GIS is its dual-nature architecture: every graphic feature on your map canvas is paired 1-to-1 with a row in a relational database table known as the Attribute Table. For instance, in a municipal parcel layer, each polygon drawn on the map is uniquely identified by an ID (e.g., Parcel_ID: 10492). In the attribute table, that row contains vital data columns: Owner Name, Assessed Property Value, Land Use Zoning Code, Registration Date, and Calculated Area. When you query the attribute table for all properties with 'Value > $500,000', the GIS instantly highlights the matching spatial polygons on your map. Conversely, selecting polygons with a spatial drawing tool immediately filters the corresponding attribute records.
Module 3: Real-World Applications and Geospatial Decision Support
Modern GIS goes far beyond simple map making; it serves as an analytical engine for multi-criteria decision evaluation (MCDE). Common industry applications include: ā¢ Urban Planning & Infrastructure: Determining optimal locations for new emergency dispatch centers based on maximum 8-minute drive-time network buffers. ā¢ Agriculture & Precision Farming: Calculating vegetation health anomalies using drone multispectral imagery to guide localized fertilizer application. ā¢ Environmental Hazard Modeling: Intersecting digital elevation models with rising sea level projections to identify vulnerable coastal infrastructure and calculate evacuation populations. ā¢ Telecommunications: Modeling 5G millimeter-wave line-of-sight propagation through high-resolution 3D building canopy models (Digital Surface Models).
ā ļø Common Errors & Troubleshooting
ā ModuleNotFoundError: No module named 'geopandas'
š” Resolution: Install via conda-forge using 'conda install -c conda-forge geopandas' to avoid C-library DLL conflicts.
ā Layer CRS undefined on load
š” Resolution: Always check 'gdf.crs'; if None, explicitly assign using 'gdf.set_crs(epsg=4326)' before reprojection.
š” Expert Tips & Best Practices
- Prefer GeoPackage (.gpkg) format over legacy ESRI Shapefile to avoid 10-character column name truncations and 2GB file limits.
- Always inspect feature bounding boxes with 'gdf.total_bounds' to ensure coordinates fall within valid terrestrial ranges.
š Python GeoPandas Spatial Data Inspection
import geopandas as gpd
# Load a vector layer (GeoPackage or Shapefile)
gdf = gpd.read_file("municipal_parcels.gpkg")
# Inspect the Coordinate Reference System (CRS)
print(f"Active CRS: {gdf.crs}")
# Inspect geometric features and attribute columns
print(f"Total Features: {len(gdf)}")
print(f"Attribute Columns: {list(gdf.columns)}")
# Filter parcels by attribute and calculate total area
commercial_parcels = gdf[gdf['zoning'] == 'COMMERCIAL']
total_area_sqm = commercial_parcels.geometry.area.sum()
print(f"Identified {len(commercial_parcels)} commercial parcels.")
print(f"Total Commercial Area: {total_area_sqm:,.2f} sq meters")
